OIL-FREE CENTRIFUGAL AIR COMPRESSOR

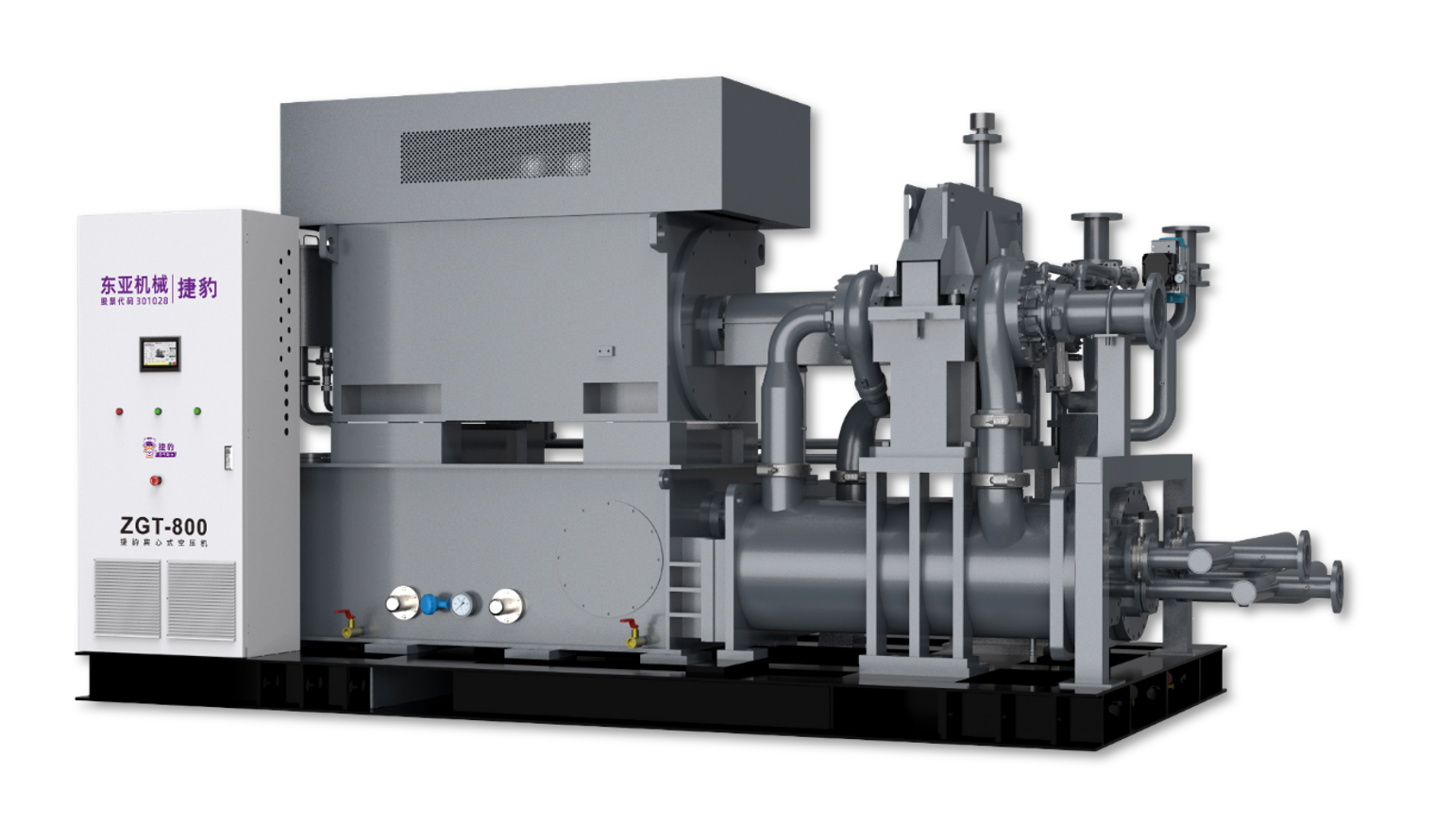

ZGTOil-Free Centrifugal Air Compressor
High-flow oil-free air for continuous central utility systems
The ZGT platform supplies 40–500 m³/min of oil-free compressed air through staged centrifugal compression, intercooling and linear inlet guide vane control.
4models
Power range150–4000 kW
Capacity / flow40–500 m³/min
Pressure / vacuum0.2–1.0 MPa
ConfigurationThree-stage oil-free centrifugal
Five engineering advantages

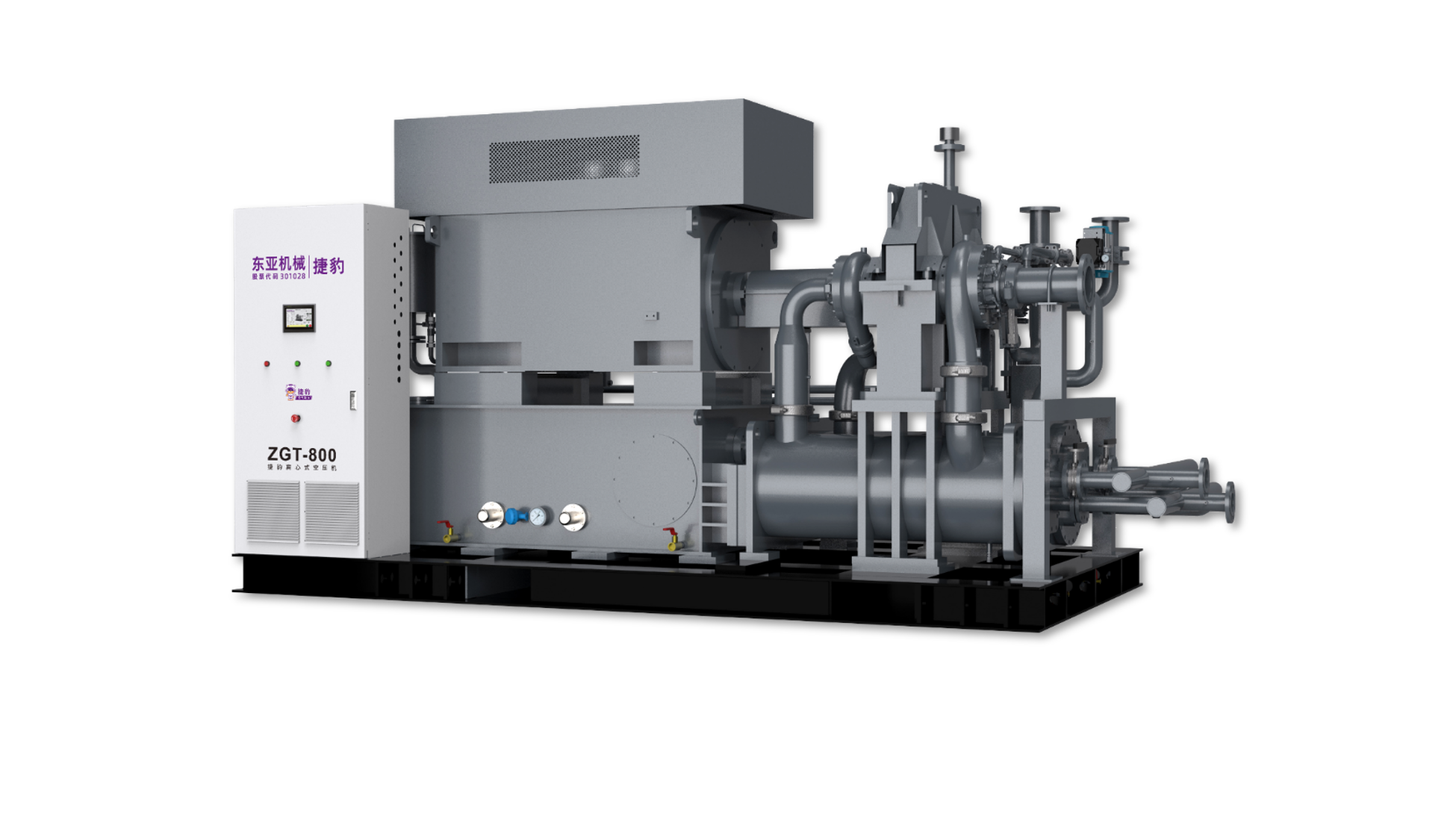

100% oil-free air path
100% oil-free air path is integrated into the published ZGT platform to improve stable, efficient operation under the intended duty.
Working principle and core architecture
Air passes through three centrifugal compression stages. Intercoolers reduce air temperature between stages, while the inlet guide vane regulates capacity and the gearbox maintains the required impeller speed.
01
100% oil-free air path
100% oil-free air path is integrated into the published ZGT platform to improve stable, efficient operation under the intended duty.
02

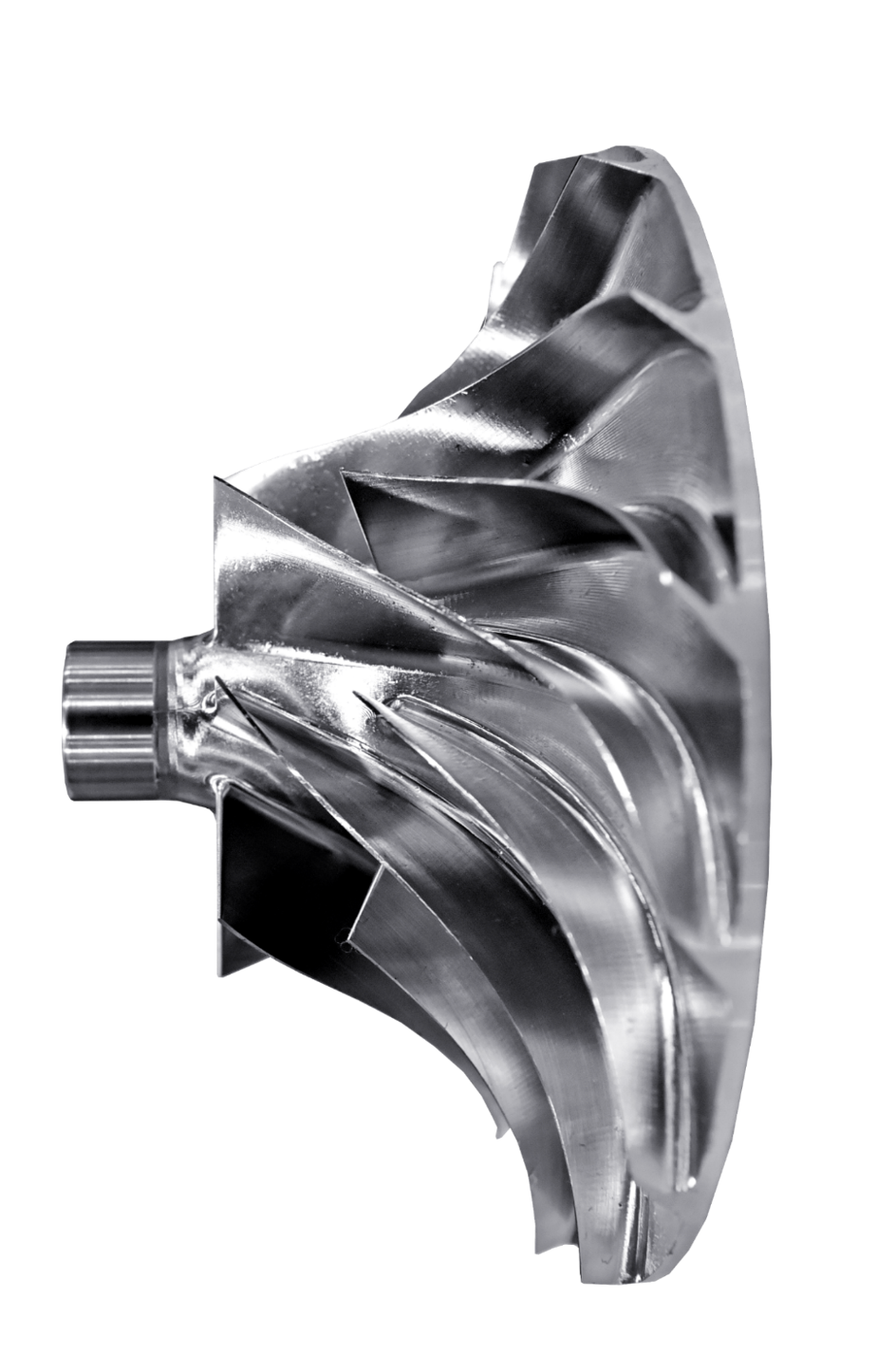

Centrifugal impeller
Centrifugal impeller is identified in the ZGT brochure as a core platform component. Final configuration varies by model and project.
03

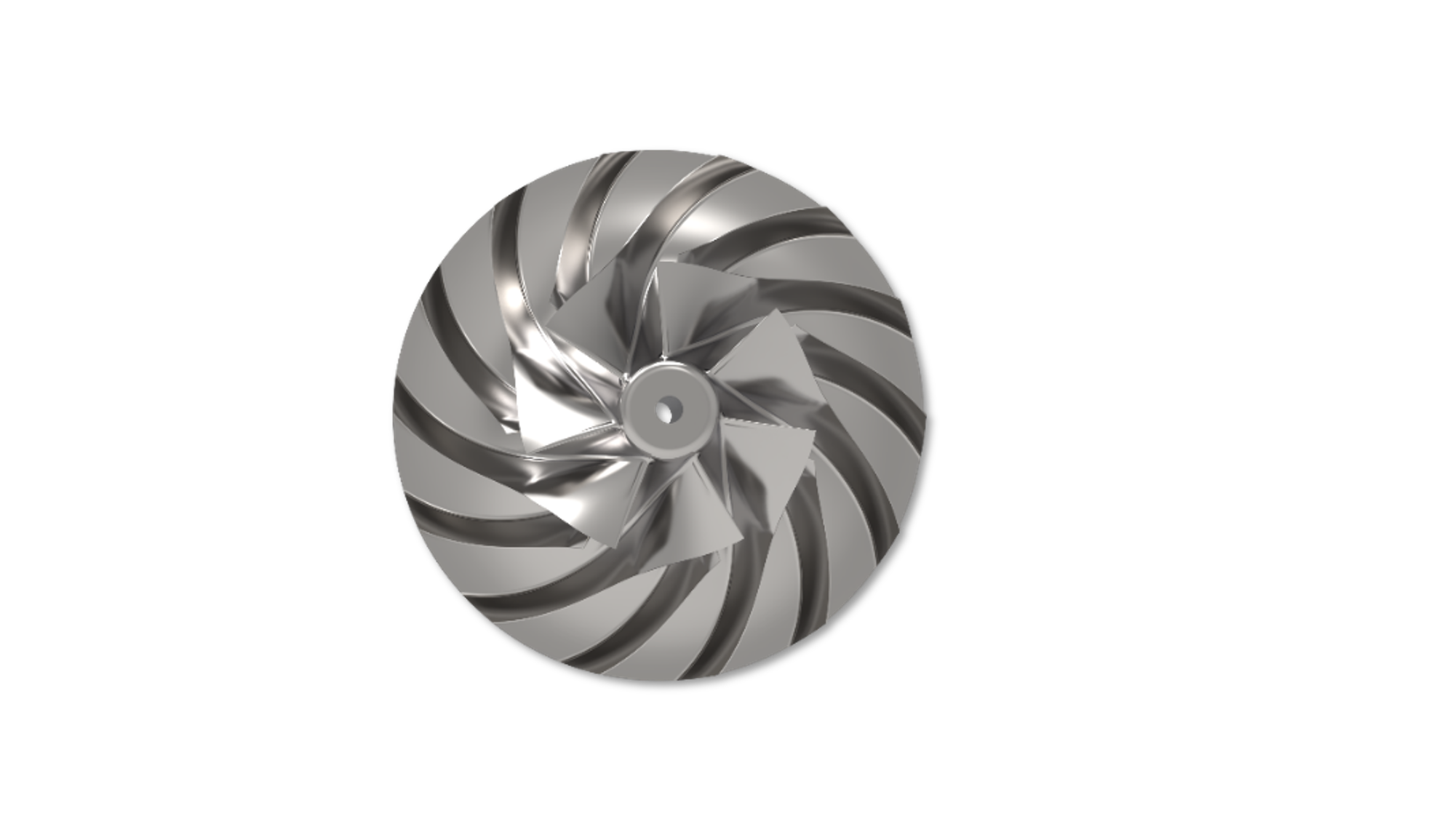

High-efficiency 3D impeller
High-efficiency 3D impeller is integrated into the published ZGT platform to improve stable, efficient operation under the intended duty.
04
Inlet guide vane
Inlet guide vane is identified in the ZGT brochure as a core platform component. Final configuration varies by model and project.
05
Applications and operating conditions
Use the following industries as selection guidance. Air quality, load profile, ambient conditions and utilities still need project verification.
06

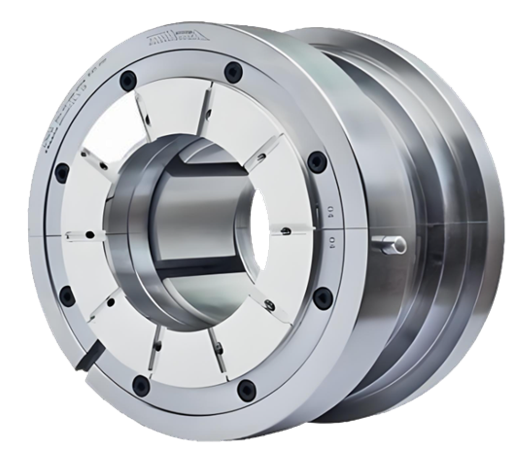

High-speed bearings
High-speed bearings is identified in the ZGT brochure as a core platform component. Final configuration varies by model and project.
ZGT technical specifications
Series-level data for initial selection. Final capacity, pressure, electrical supply, cooling and installation requirements must be confirmed for each project.
Performance
- Motor power
- 150–4000 kW
- Capacity / flow
- 40–500 m³/min
- Pressure / vacuum
- 0.2–1.0 MPa
- Compression / pump type
- Three-stage centrifugal compression
Drive and compression
- Motor and drive
- High-speed impellers with integrated gearbox
- Efficiency class
- 100% oil-free air path
- Cooling method
- Three intercoolers
- Transmission
- Integrated gearbox, published efficiency ≥98%
Installation and control
- Control and communication
- Linear inlet guide vanes
- Published noise
- ≤88 dB(A)
- Electrical supply
- Project-specific high-voltage supply
- Operating duty
- High-flow continuous base load
Published model range
The brochure publishes 4 models across 150–4000 kW. Confirm the final selection against actual flow, pressure or vacuum, duty cycle and site utilities.
0140–90 m³/min
Compact and point-of-use duty
0290–280 m³/min
General continuous industrial duty
03280–500 m³/min
Centralized and high-capacity systems
View the complete 4-model table4 models
Swipe horizontally to view all columns.
| Model | Pressure | Capacity m³/min | Motor kW / HP |
|---|---|---|---|
| ZGT800 | 0.2–1.0 MPa | 40–90 | 150–630 kW |
| ZGT1500 | 0.2–1.0 MPa | 90–160 | 250–1120 kW |
| ZGT2750 | 0.2–1.0 MPa | 160–280 | 450–2240 kW |
| ZGT5000 | 0.2–1.0 MPa | 280–500 | 800–4000 kW |
Source: manufacturer brochure, revision 2026-03-13. Product development is continuous; specifications may change without prior notice.
Solutions
Applications and operating conditions
Use the following industries as selection guidance. Air quality, load profile, ambient conditions and utilities still need project verification.
Solutions- Electronics
- Chemical production
- Research facilities
- Textiles
- Medical manufacturing
- Food production
Product engineering and applications
Frequently asked questions
ZGT Oil-Free Centrifugal Air Compressor is The ZGT platform supplies 40–500 m³/min of oil-free compressed air through staged centrifugal compression, intercooling and linear inlet guide vane control.
Base selection on measured normal and peak demand, required pressure or vacuum, annual operating hours, electricity supply, cooling conditions, air-quality requirements and installation environment.
No unconditional percentage is guaranteed. Published comparisons depend on baseline equipment, load profile and operating conditions. A project assessment is required.
Provide the application, required capacity, pressure or vacuum, normal and peak load, operating hours, voltage and frequency, ambient conditions, cooling utilities and delivery country.
