COMPACT PM VSD SCREW COMPRESSOR

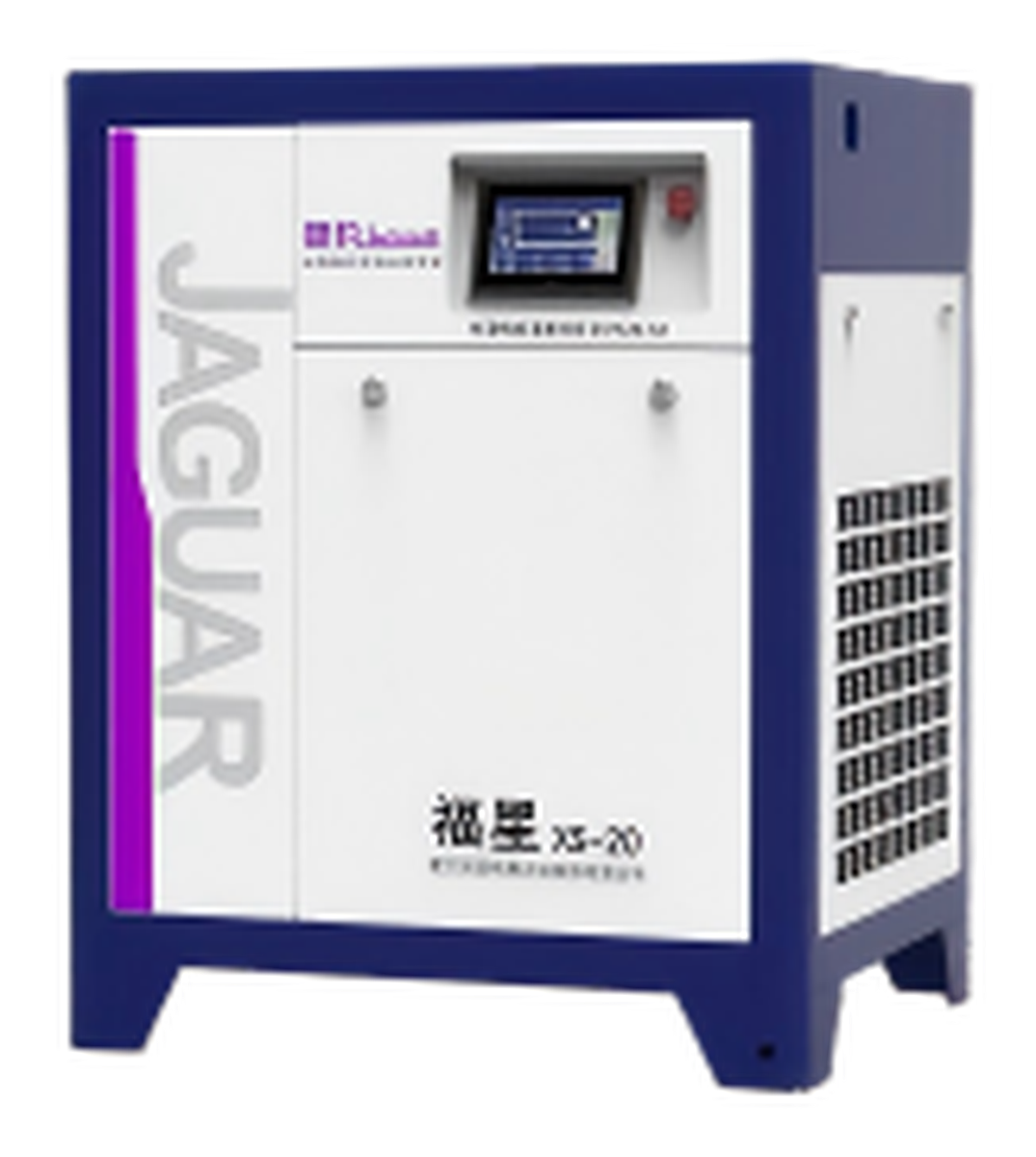

XSSeries PM VSD Screw Compressor
Compact variable-speed air for workshops and distributed production
The 10–100 HP XS Series combines a compact enclosure, IE5 permanent-magnet variable-speed drive and direct transmission for workshops and zoned air systems.
9models
Power range7.5–75 kW / 10–100 HP
Capacity / flow0.75–13.8 m³/min
Pressure / vacuum0.7–1.5 MPa
ConfigurationCompact IE5 PM VSD
Five engineering advantages
Compact vertical package
Compact vertical package is integrated into the published XS platform to improve stable, efficient operation under the intended duty.
Working principle and core architecture
The permanent-magnet motor drives the screw air end directly. The controller varies motor speed to match compressed-air demand, while the aftercooler and package ventilation manage operating temperature.
01

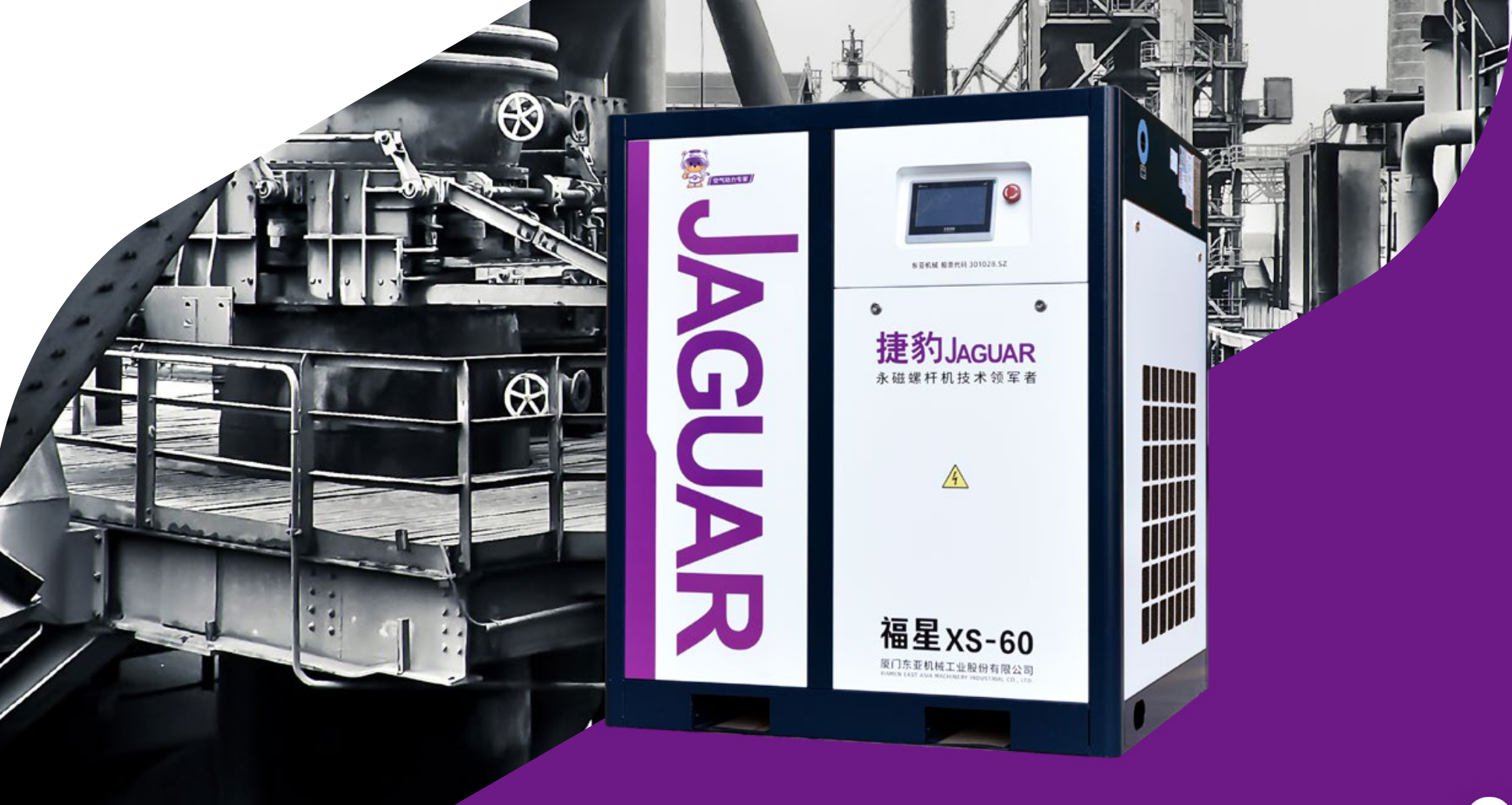

Compact vertical package
Compact vertical package is integrated into the published XS platform to improve stable, efficient operation under the intended duty.
02

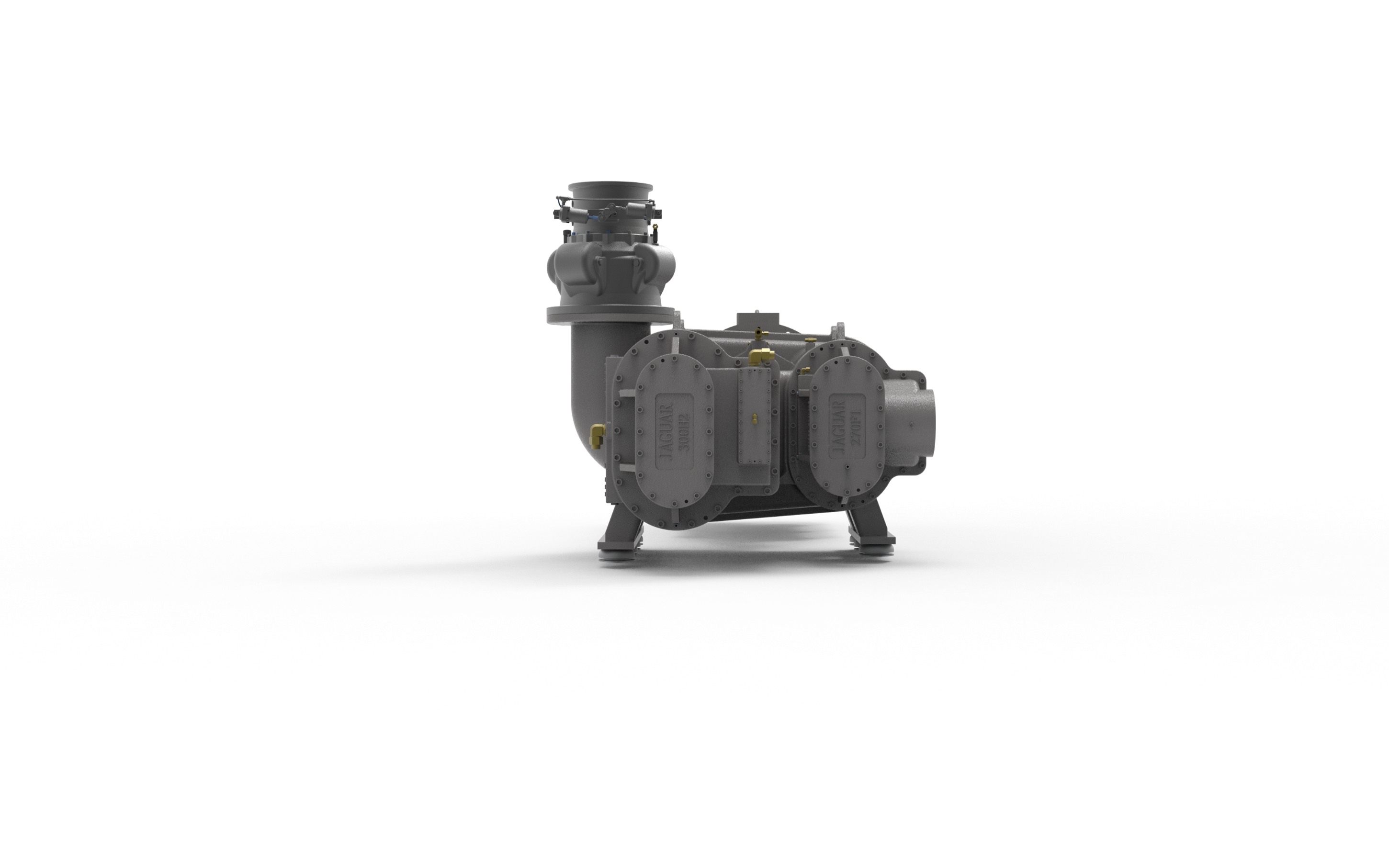

Screw air end
Screw air end is identified in the XS brochure as a core platform component. Final configuration varies by model and project.
03
IE5 liquid-cooled PM motor
IE5 liquid-cooled PM motor is integrated into the published XS platform to improve stable, efficient operation under the intended duty.
04

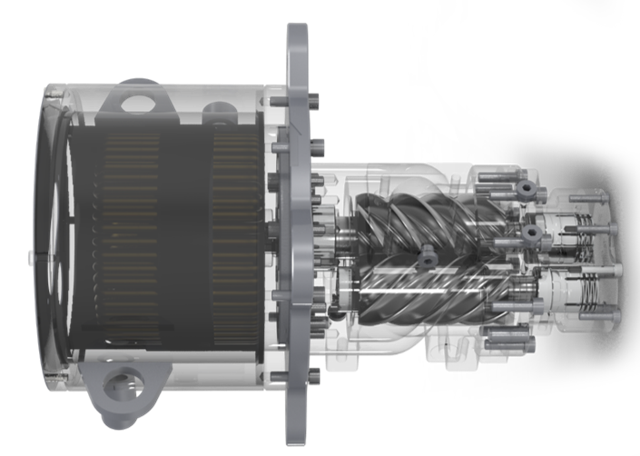

IE5 PM motor
IE5 PM motor is identified in the XS brochure as a core platform component. Final configuration varies by model and project.
05
Applications and operating conditions
Use the following industries as selection guidance. Air quality, load profile, ambient conditions and utilities still need project verification.
06

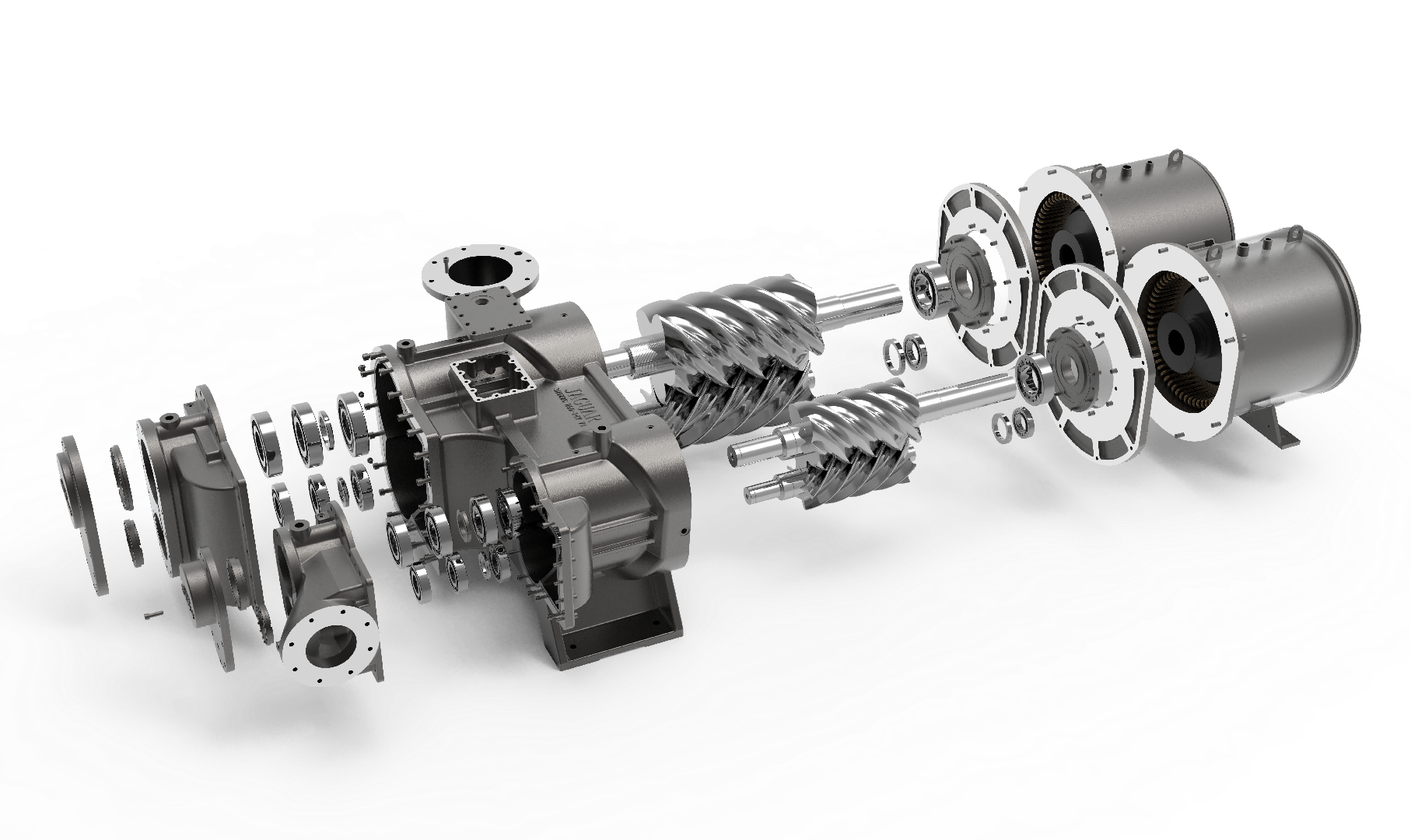

Direct-drive coupling
Direct-drive coupling is identified in the XS brochure as a core platform component. Final configuration varies by model and project.
XS technical specifications
Series-level data for initial selection. Final capacity, pressure, electrical supply, cooling and installation requirements must be confirmed for each project.
Performance
- Motor power
- 7.5–75 kW / 10–100 HP
- Capacity / flow
- 0.75–13.8 m³/min
- Pressure / vacuum
- 0.7–1.5 MPa
- Compression / pump type
- Oil-injected rotary screw
Drive and compression
- Motor and drive
- IE5 permanent-magnet VSD
- Efficiency class
- IE5
- Cooling method
- High-efficiency aftercooler
- Transmission
- Coaxial direct drive
Installation and control

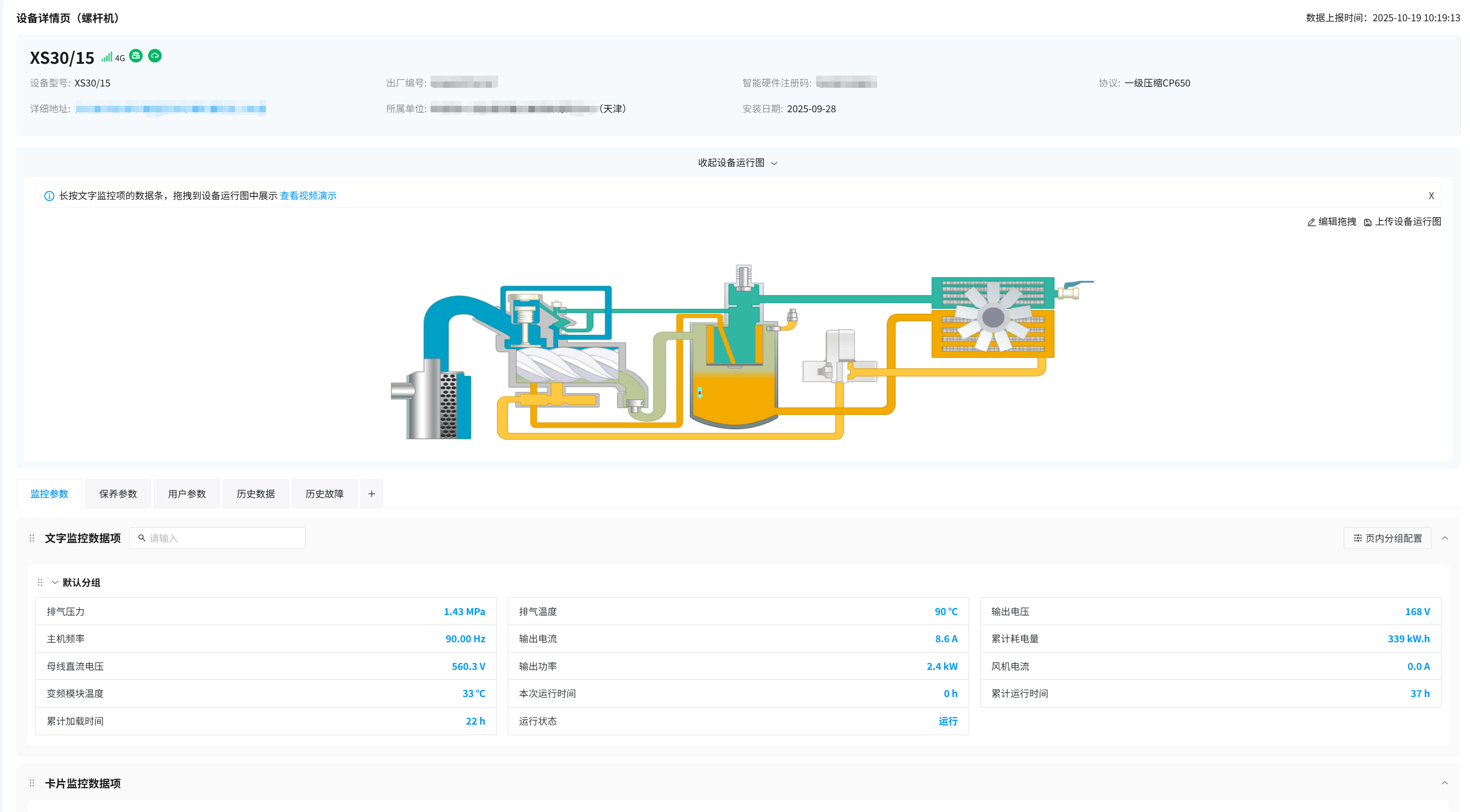

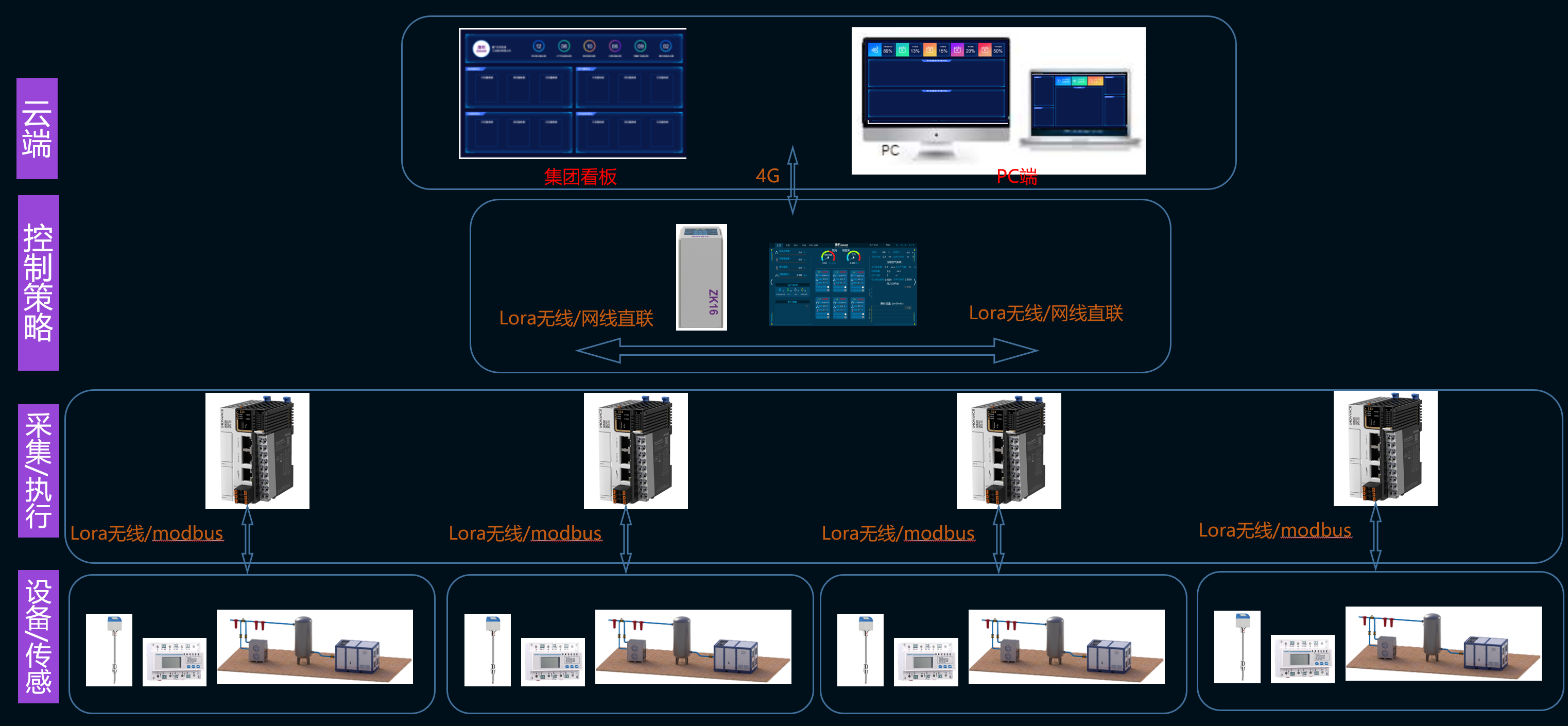

- Control and communication
- Integrated VSD controller
- Published noise
- 61–66 dB(A)
- Electrical supply
- 380 V; 50 Hz (project options)
- Operating duty
- Workshop and general industrial duty
Published model range
The brochure publishes 9 models across 7.5–75 kW / 10–100 HP. Confirm the final selection against actual flow, pressure or vacuum, duty cycle and site utilities.
0110–20 HP
Compact and point-of-use duty
0230–60 HP
General continuous industrial duty
0375–100 HP
Centralized and high-capacity systems
View the complete 9-model table9 models
Swipe horizontally to view all columns.
| Model | Motor kW / HP | Pressure / flow | Noise dB(A) | Inlet / outlet | Weight kg | Dimensions L×W×H mm |
|---|---|---|---|---|---|---|
| XS-10 | 7.5 / 10 | 0.7/1.200.8/1.101.0/0.951.25/0.851.5/0.75 | 61±2 | G3/4 | 188 | 800×670×950 |
| XS-15 | 11 / 15 | 0.7/1.800.8/1.701.0/1.501.25/1.301.5/1.10 | 61±2 | G1 | 230 | 900×700×1100 |
| XS-20 | 15 / 20 | 0.7/2.500.8/2.401.0/2.001.25/1.701.5/1.50 | 62±2 | G1 | 268 | 900×750×1130 |
| XS-30 | 22 / 30 | 0.7/3.900.8/3.801.0/3.101.25/2.501.5/2.30 | 64±2 | G1-1/4 | 365 | 1000×870×1150 |
| XS-40 | 30 / 40 | 0.7/5.100.8/5.001.0/4.301.25/3.901.5/3.50 | 64±2 | G1-1/4 | 462 | 1170×900×1300 |
| XS-50 | 37 / 50 | 0.7/6.400.8/6.301.0/5.601.25/5.101.5/4.20 | 64±2 | G1-1/4 | 510 | 1250×900×1300 |
| XS-60 | 45 / 60 | 0.7/8.000.8/7.501.0/7.001.25/6.001.5/4.50 | 65±2 | G1-1/2 | 680 | 1200×1050×1410 |
| XS-75 | 55 / 75 | 0.7/10.500.8/10.101.0/8.901.25/7.601.5/6.00 | 65±2 | G1-1/2 | 830 | 1400×1000×1450 |
| XS-100 | 75 / 100 | 0.7/13.800.8/13.101.0/12.101.25/10.101.5/7.80 | 66±2 | G2 | 1120 | 1550×1200×1550 |
Source: manufacturer brochure, revision 2026-03-12. Product development is continuous; specifications may change without prior notice.
Solutions

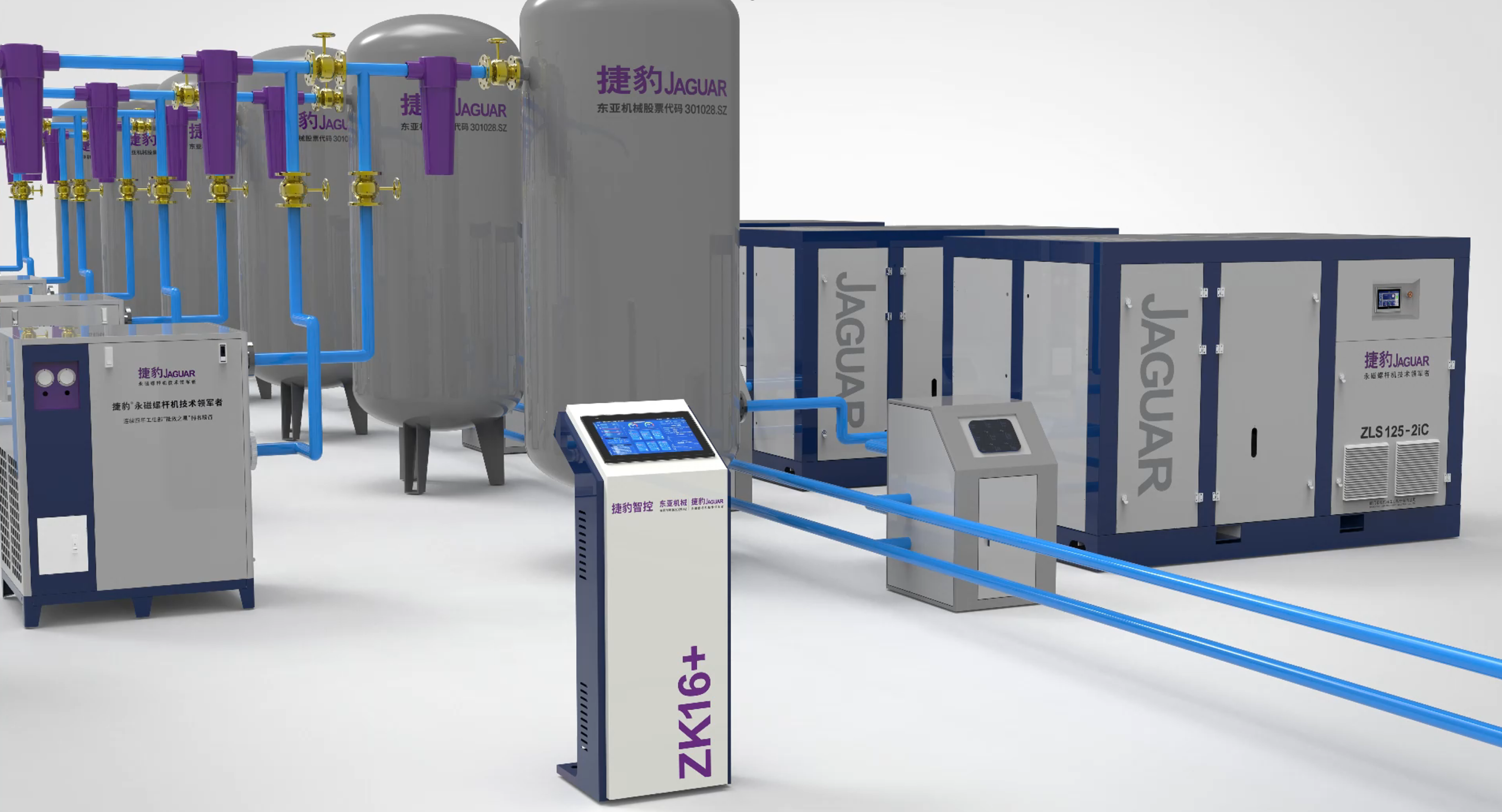

Applications and operating conditions
