PM VSD SCREW VACUUM PUMP

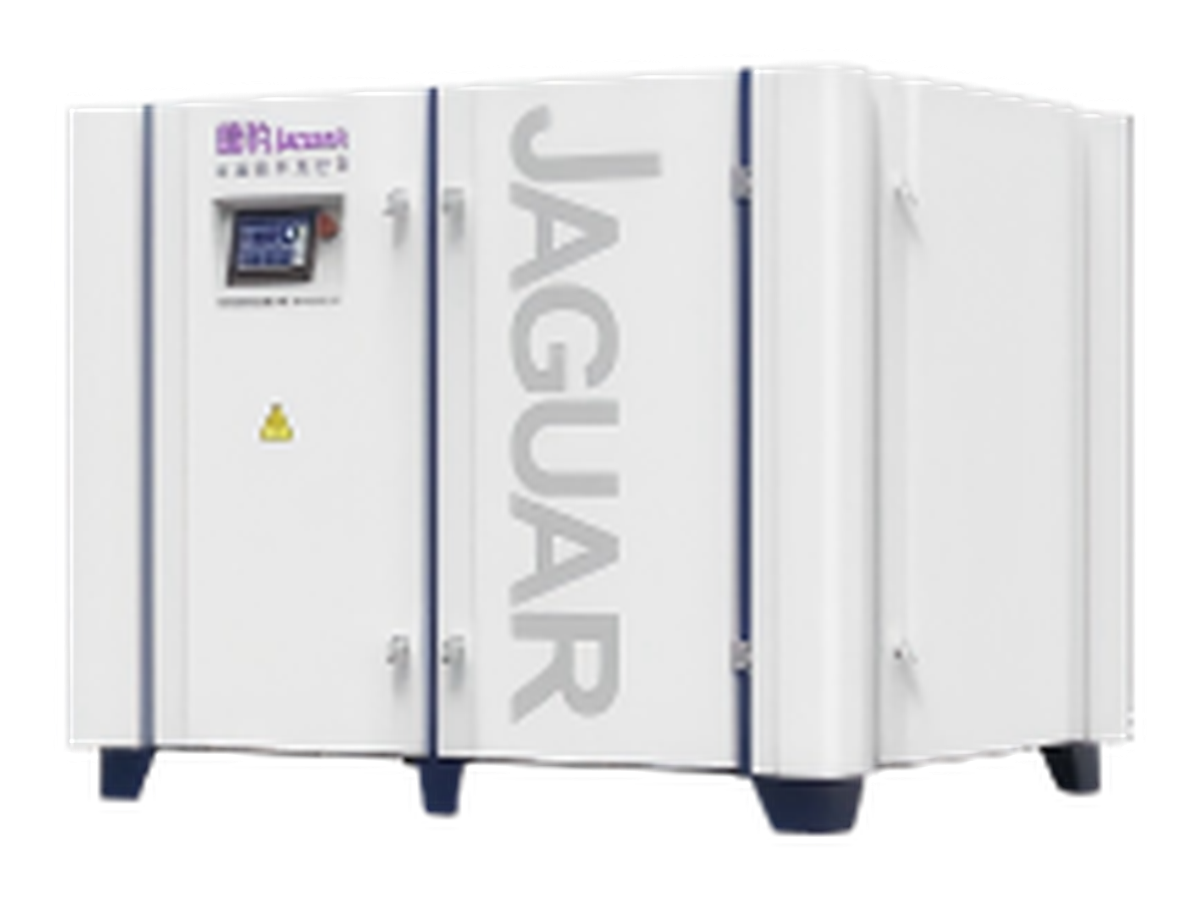

VCPM VSD Screw Vacuum Pump
Demand-matched vacuum for centralized industrial systems
The VC series combines a dedicated screw vacuum air end, permanent-magnet variable-speed drive and constant-vacuum control for centralized industrial systems.
14models
Power range4–132 kW / 5–175 HP
Capacity / flow240–7920 m³/h
Pressure / vacuumUltimate vacuum ≤35 Pa
ConfigurationOil-injected PM VSD screw vacuum
Five engineering advantages

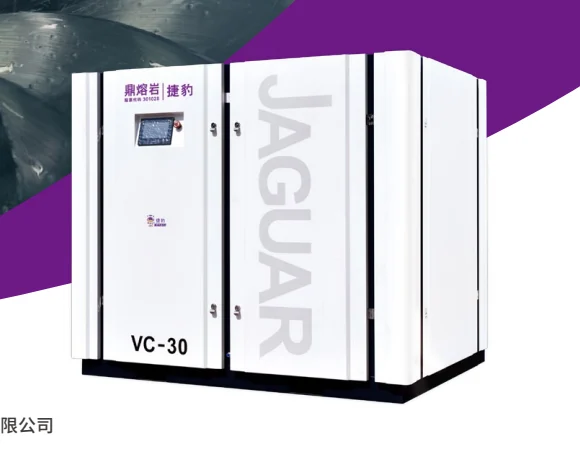

Dedicated screw vacuum air end
Dedicated screw vacuum air end is integrated into the published VC platform to improve stable, efficient operation under the intended duty.

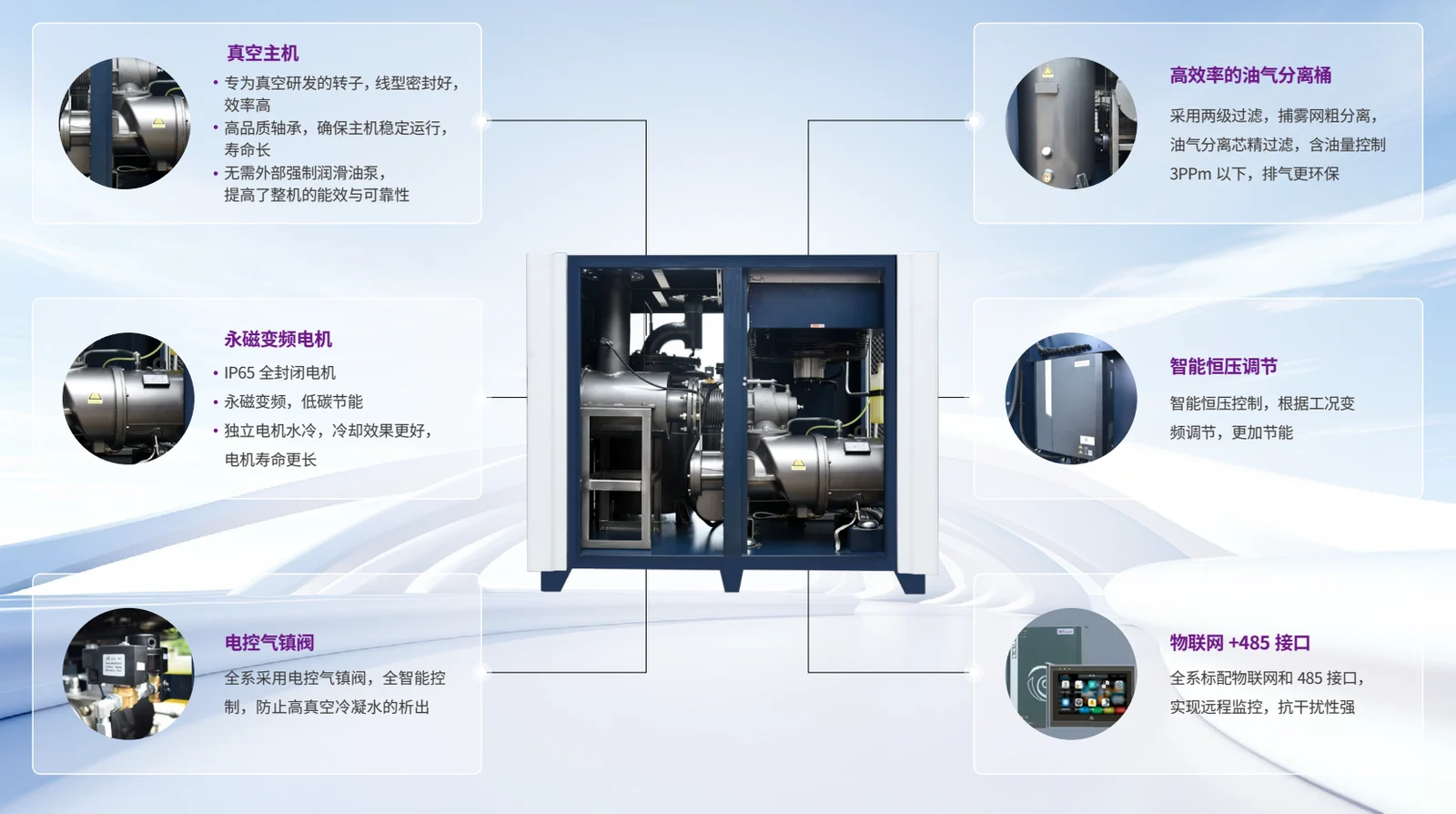

Working principle and core architecture
Rotating screw profiles expand the inlet chamber and draw process gas into the pump. The controller changes motor speed to maintain the target vacuum, while the oil-separation system recovers injected oil from the discharge stream.
01
Dedicated screw vacuum air end
Dedicated screw vacuum air end is integrated into the published VC platform to improve stable, efficient operation under the intended duty.
02

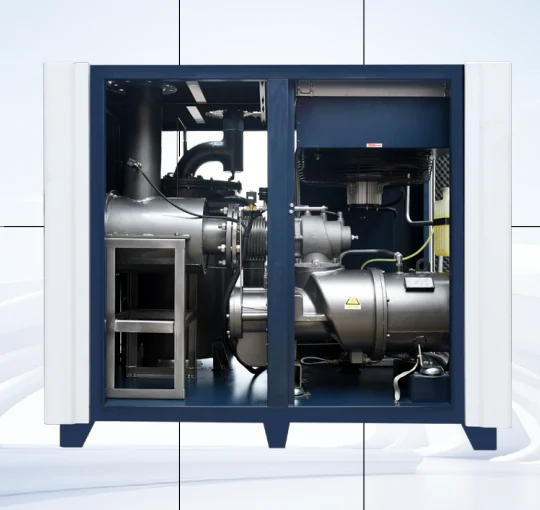

Vacuum screw air end
Vacuum screw air end is identified in the VC brochure as a core platform component. Final configuration varies by model and project.
03
IP65 PM VSD motor
IP65 PM VSD motor is integrated into the published VC platform to improve stable, efficient operation under the intended duty.
04
PM VSD motor
PM VSD motor is identified in the VC brochure as a core platform component. Final configuration varies by model and project.
05
Applications and operating conditions
Use the following industries as selection guidance. Air quality, load profile, ambient conditions and utilities still need project verification.
06
Oil-separation vessel
Oil-separation vessel is identified in the VC brochure as a core platform component. Final configuration varies by model and project.
VC technical specifications
Series-level data for initial selection. Final capacity, pressure, electrical supply, cooling and installation requirements must be confirmed for each project.
Performance
- Motor power
- 4–132 kW / 5–175 HP
- Capacity / flow
- 240–7920 m³/h
- Pressure / vacuum
- Ultimate vacuum ≤35 Pa
- Compression / pump type
- Oil-injected screw vacuum pump
Drive and compression
- Motor and drive
- IP65 permanent-magnet VSD motor
- Efficiency class
- Demand-based variable speed
- Cooling method
- Independent motor liquid cooling
- Transmission
- Direct drive
Installation and control
- Control and communication
- Constant-vacuum controller; IoT / RS485
- Published noise
- Model dependent
- Electrical supply
- Project-specific supply
- Operating duty
- Centralized industrial vacuum
Published model range
The brochure publishes 14 models across 4–132 kW / 5–175 HP. Confirm the final selection against actual flow, pressure or vacuum, duty cycle and site utilities.
015–20 HP
Compact and point-of-use duty
0230–75 HP
General continuous industrial duty
03100–175 HP
Centralized and high-capacity systems
View the complete 14-model table14 models
Swipe horizontally to view all columns.
| Model | Motor kW / HP | Pumping speed m³/h | Vacuum | Inlet / outlet | Weight kg | Dimensions L×W×H mm |
|---|---|---|---|---|---|---|
| VC-05 | 4 / 5 | 240 | ≤35 Pa | 2 in / 2 in | 405 | 1200×1150×1100 |
| VC-07 | 5.5 / 7 | 468 | ≤35 Pa | DN80 / DN65 | 550 | 1600×1150×1240 |
| VC-10 | 7.5 / 10 | 588 | ≤35 Pa | DN80 / DN65 | 550 | 1600×1150×1240 |
| VC-15 | 11 / 15 | 780 | ≤35 Pa | DN80 / DN65 | 650 | 1600×1150×1240 |
| VC-20 | 15 / 20 | 876 | ≤35 Pa | DN80 / DN65 | 720 | 1600×1150×1240 |
| VC-30 | 22 / 30 | 1320 | ≤35 Pa | DN150 / DN100 | 1050 | 1800×1350×1440 |
| VC-40 | 30 / 40 | 1620 | ≤35 Pa | DN150 / DN100 | 1850 | 2150×1600×1700 |
| VC-50 | 37 / 50 | 1812 | ≤35 Pa | DN150 / DN100 | 2050 | 2150×1600×1700 |
| VC-60 | 45 / 60 | 2820 | ≤35 Pa | DN150 / DN150 | 2240 | 2500×1750×1800 |
| VC-75 | 55 / 75 | 3300 | ≤35 Pa | DN200 / DN150 | 3400 | 2800×2000×1800 |
| VC-100 | 75 / 100 | 4440 | ≤35 Pa | DN200 / DN150 | 4200 | 2950×2300×1950 |
| VC-125 | 90 / 125 | 5400 | ≤35 Pa | DN200 / DN150 | 5500 | 3650×2400×2000 |
| VC-150 | 110 / 150 | 6600 | ≤35 Pa | DN200 / DN150 | 6000 | 4150×2600×2000 |
| VC-175 | 132 / 175 | 7920 | ≤35 Pa | DN200 / DN150 | 6200 | 4150×2600×2000 |
Source: manufacturer brochure, revision 2026-03-12. Product development is continuous; specifications may change without prior notice.
Solutions
Applications and operating conditions
Use the following industries as selection guidance. Air quality, load profile, ambient conditions and utilities still need project verification.
Solutions- Vacuum metallurgy
- Electronics
- Thermoforming
- Adsorption and handling
- Chemical and pharmaceutical
- Can filling and packaging
SELECTED CONFIGURATION REFERENCES
Proven product configurations
Anonymized technical references from recorded projects. They show equipment combinations, not guaranteed performance for a new site.
01
Anonymized reference
ApplicationR&D and automotive components
Central vacuum package for R&D production
Three VC pumps are recorded as the vacuum side of a coordinated compressed-air and vacuum utility package.
Recorded configuration
Discuss a similar project
- 3 × VC-50
02
Anonymized reference
ApplicationGeneral industrial vacuum
Standalone industrial vacuum source
A single VC-75 configuration provides a dedicated vacuum source for an independent process line.
Recorded configuration
Discuss a similar project
- 1 × VC-75
Product engineering and applications
Frequently asked questions
VC PM VSD Screw Vacuum Pump is The VC series combines a dedicated screw vacuum air end, permanent-magnet variable-speed drive and constant-vacuum control for centralized industrial systems.
Base selection on measured normal and peak demand, required pressure or vacuum, annual operating hours, electricity supply, cooling conditions, air-quality requirements and installation environment.
No unconditional percentage is guaranteed. Published comparisons depend on baseline equipment, load profile and operating conditions. A project assessment is required.
Provide the application, required capacity, pressure or vacuum, normal and peak load, operating hours, voltage and frequency, ambient conditions, cooling utilities and delivery country.
